WIRELESS OPERATION — No need for cables
PATENT PENDING CBD ANTENNAS
CBD ANTENNA TRANSMITS TRIPLE FREQUENCIES — 200, 400 and 800 MHz
ULTRA WIDE BAND PERFORMANCE — 50 to 1400 MHz (1350 MHz bandwidth)
REPLACES SEVERAL CONVENTIONAL ANTENNAS
WITHOUT “DEAD ZONES” OR BLIND SPOTS
BLENDED FREQUENCY DATA — Optimal frequency automatically selected for all depths
UNIQUE RELATION FREQUENCY/VELOCITY — Proprietary formula
AIR COUPLED OPERATION — No need for ground coupling
COMPLETE GPR SYSTEM — 2 channel GPR, CBD-antennas, CU, Cart, Transport case
WIDE SELECTION OF CONTROL UNITS — Rugged PC with bundled software
SMART CART — Quick release wheels for push and pull operation
COMPACT AND FLEXIBLE SYSTEM — Only 15 kg
POST PROCESSING SOFTWARE — Included with purchase
OPTIONAL REAL TIME SAMPLING

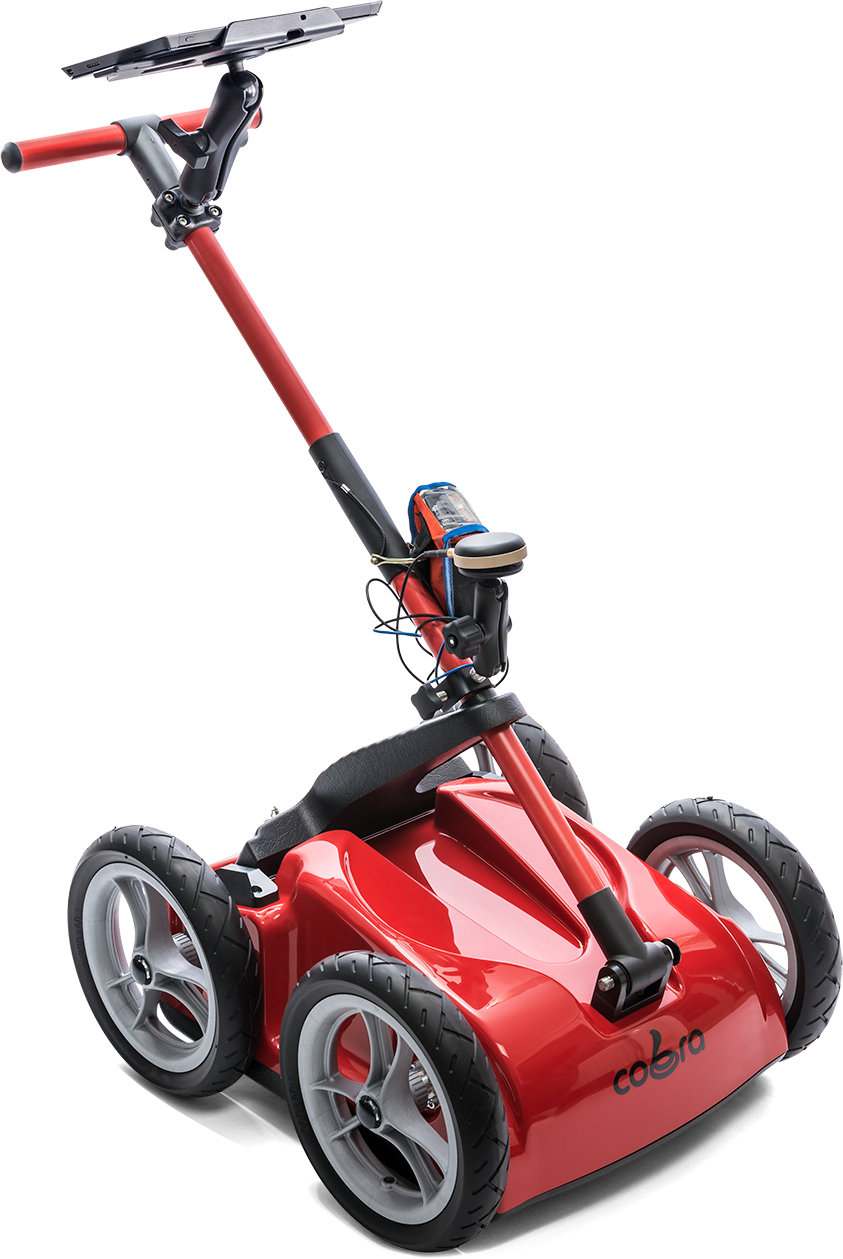

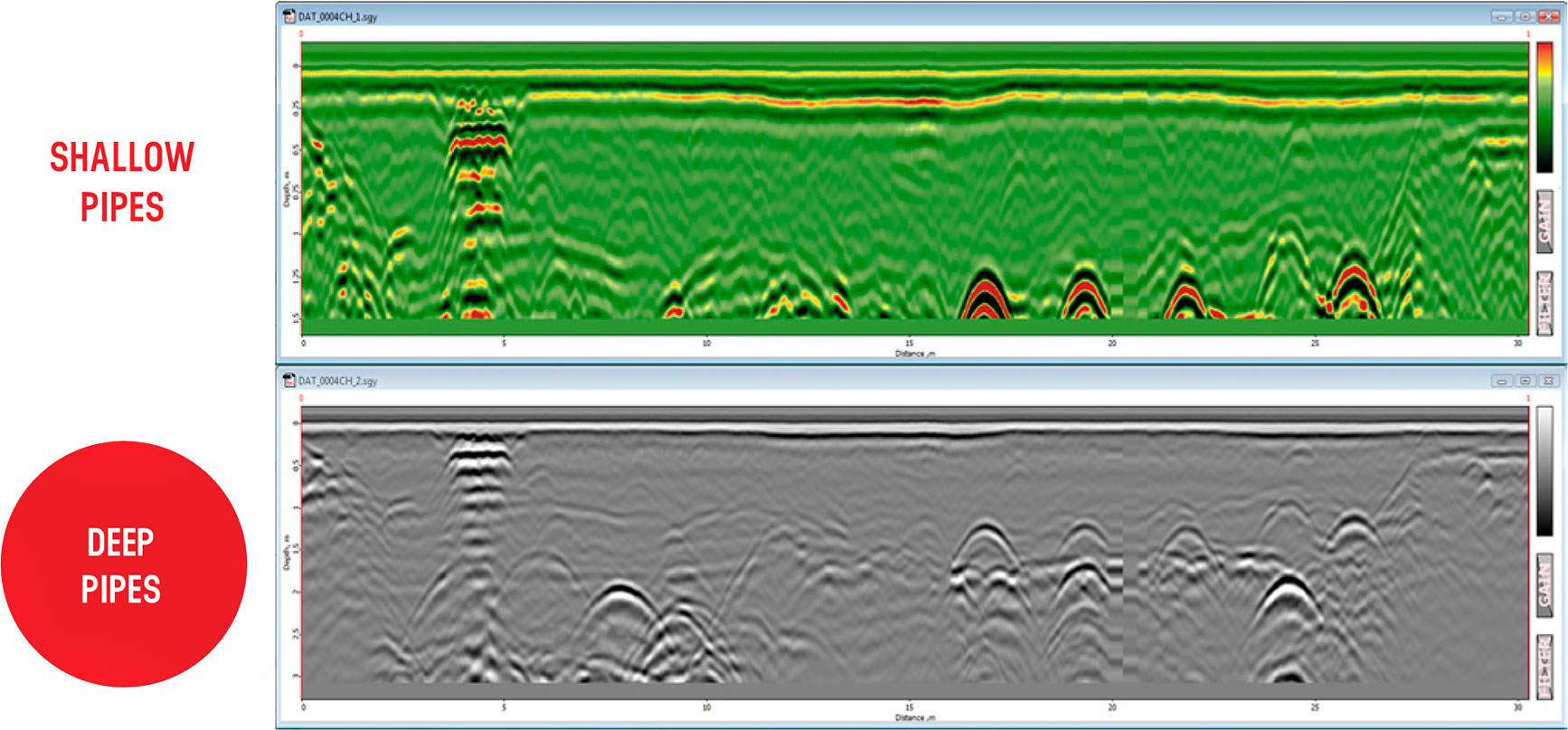

The COBRA WIRELESS GPR collects data from hundred thousands of pulse reflections each second to help researchers identify objects below ground.
It works in a multi frequency band from 100 to 900 MHz, thus replacing 2-3 antennas with different frequencies used by other and older GPR systems.
